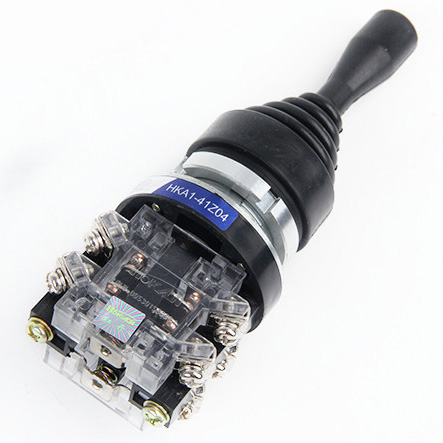

HKA1-41Z04 AC 380V 5A 10A 15A IP65 4 way 30mm fixing hole 4NO 4 position Momentary Joystick Switch
$ 9.90
Description Place of Origin : China Model Number : HKA1-41Z04 Protection Level : IP65 Max. Current : 5A Max. Voltage : 600V Mechnical life : 100,000 times Electrical life : 100,000 times HKA1-41Z04 AC 380V 5A 10A 15A IP65 4 way 30mm fixing hole 4NO 4 position Momentary Joystick Switch Product Name Joystick Switch Model HKA1-41Z02 HKA1-41Y02 HKA1-41Z04 HKA1-41Y04 HKA1-42Z04 HKA1-42Y04 HKA1-41QZ HKA1-41QY Reference Photo: Action Type Momentary Latching Momentary Latching Momentary Latching Momentary Latching Position 2 Position 4 Position Contact Type 2NO 4NO 8NO 4NO 4NC Contact Figure Voltage & Current AC 380V, max 15A 0.6A 125Vdc, 0.3A 250Vdc, 15A 125Vac/250Vac Fixing Hole 30mm diameter Angle ±30° Mechanical Life 100 Thousand times Electrical Life 100 Thousand times * HKA1-41Z02-2: 2 position, 4NO, Momentary * HKA1-41Y02-2: 2 position, 4NO, Latching * model plusing “A” in the end: with button type Dimension of HKA1-41Z02, HKA1-41Y02, HKA1-41Z04, HKA1-41Y04: Dimension of HKA1-42Z04, HKA1-42Y04: Dimension of HKA1-41QZ, HKA1-41QY:
