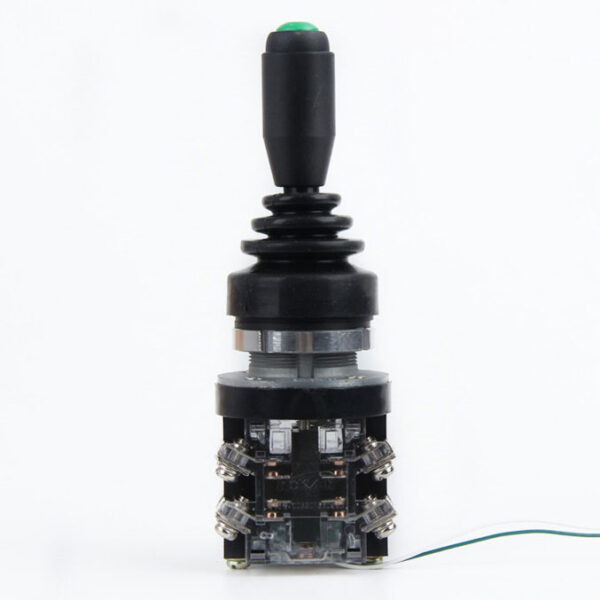

HKA1-41Z02A HKA1-41Y02A HKA1-41Z04A HKA1-41Y04A AC 380V 5A 10A 15A 2NO 4NO fire button trigger 30mm Joystick with button on top

Description Place of Origin : China Protection Level : IP65 Max. Current : 5A 10A 15A Max. Voltage : 600V Mechnical life : 100,000 times Electrical life : 100,000 times HKA1-41Z02A HKA1-41Y02A HKA1-41Z04A HKA1-41Y04A AC 380V 5A 10A 15A 2NO 4NO fire button trigger 30mm Joystick with button on top   Joystick Switch (with button on top): Product Name Joystick Switch (with button on top) Model HKA1-41Z02A HKA1-41Y02A HKA1-41Z04A HKA1-41Y04A Reference Photo:   Action Type Momentary Latching Momentary Latching Position 2 Position 2 Position 4 Position 2 Position Contact Type 2NO 2NO 4NO 4NO Contact Figure Voltage & Current AC 380V, max 15A Fixing Hole 30mm diameter Angle ±20° Mechanical Life 500 Thousand times Electrical Life 500 Thousand times   Dimension of HKA1-41Z02A, HKA1-41Y02A, HKA1-41Z04A, HKA1-41Y04A:   Joystick Switch (without button on top): Product Name Joystick Switch (without button on top) Model HKA1-41Z02 HKA1-41Y02 HKA1-41Z04 HKA1-41Y04 HKA1-42Z04 HKA1-42Y04 HKA1-41QZ HKA1-41QY Reference Photo:   Action Type Momentary Latching Momentary Latching Momentary Latching Momentary Latching Position 2 Position 4 Position Contact Type 2NO 4NO 8NO 4NO 4NC Contact Figure       Voltage & Current AC 380V, max 15A 0.6A 125Vdc, 0.3A 250Vdc, 15A 125Vac/250Vac Fixing Hole 30mm diameter Angle ±30° Mechanical Life 100 Thousand times Electrical Life 100 Thousand times * HKA1-41Z02-2:  2 position, 4NO, Momentary * HKA1-41Y02-2:  2 position, 4NO, Latching * model plusing “A” in the end: with button type   Dimension of HKA1-41Z02, HKA1-41Y02, HKA1-41Z04, HKA1-41Y04:     Dimension of HKA1-42Z04, HKA1-42Y04:     Dimension of HKA1-41QZ, HKA1-41QY:
