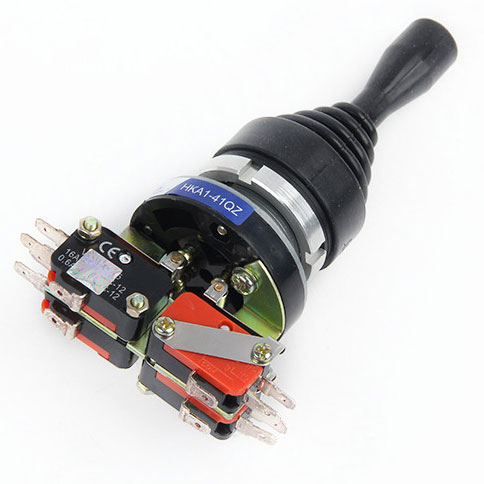

HKA1-41QZ DC 0.6A 125Vdc 0.3A 250Vdc and AC 15A 125Vac 250Vac 30mm fixing hole Spring return 4NC 4NO Momentary Joystick Switch

Description Place of Origin : China Model Number : HKA1-41QZ Protection Level : IP65 Max. Current : DC 0.6A, AC 15A Max. Voltage : 250V Mechnical life : 100,000 times Electrical life : 100,000 times HKA1-41QZ DC 0.6A 125Vdc 0.3A 250Vdc and AC 15A 125Vac 250Vac 30mm fixing hole Spring return 4NC 4NO Momentary Joystick Switch   Product Name Joystick Switch Model HKA1-41Z02 HKA1-41Y02 HKA1-41Z04 HKA1-41Y04 HKA1-42Z04 HKA1-42Y04 HKA1-41QZ HKA1-41QY Reference Photo:   Action Type Momentary Latching Momentary Latching Momentary Latching Momentary Latching Position 2 Position 4 Position Contact Type 2NO 4NO 8NO 4NO 4NC Contact Figure       Voltage & Current AC 380V, max 15A 0.6A 125Vdc, 0.3A 250Vdc, 15A 125Vac/250Vac Fixing Hole 30mm diameter Angle ±30° Mechanical Life 100 Thousand times Electrical Life 100 Thousand times * HKA1-41Z02-2:  2 position, 4NO, Momentary * HKA1-41Y02-2:  2 position, 4NO, Latching * model plusing “A” in the end: with button type   Dimension of HKA1-41Z02, HKA1-41Y02, HKA1-41Z04, HKA1-41Y04:     Dimension of HKA1-42Z04, HKA1-42Y04:     Dimension of HKA1-41QZ, HKA1-41QY:
