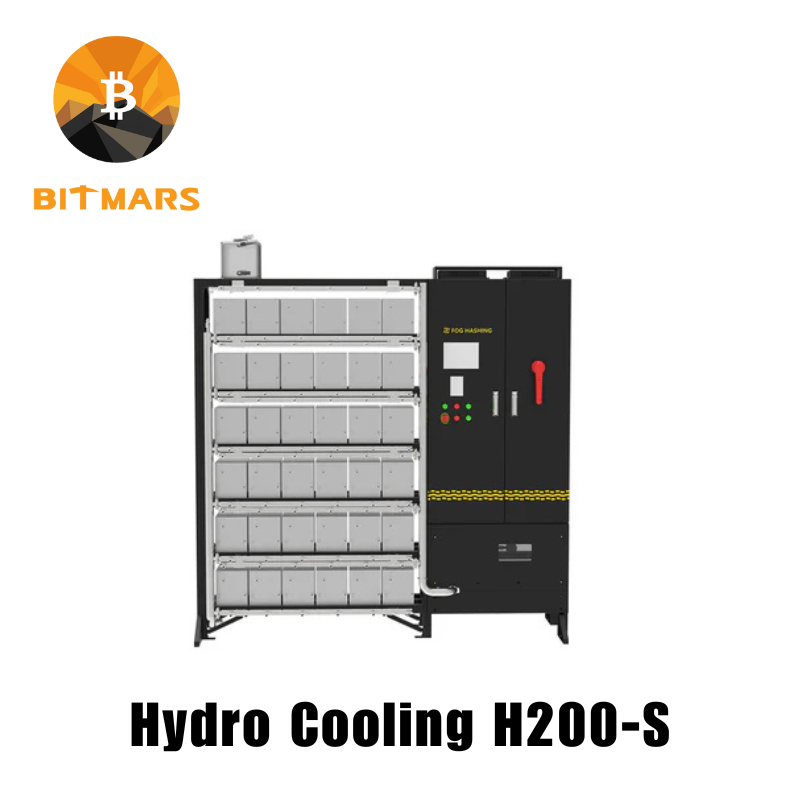

FOGHASHING Hydro Cooling Kit H200-S (Support 36 Antminer S21 Hyd / S19 Hyd Miners)

Specification H200-S Size 1550mm(W)*2200mm(H)*400mm(D) System Power Load (MAX) 226kW Miner Capacity 36 S21/S19 Hydro Input Voltage 3-Phase 380V-415V, 50/60Hz PDU PDC/PDU Network 1000M Network Switch*2 Operation Temperature -25 ~ 35℃ Operating Humidity 5%~95%RH Water Manifold Stainless Steel Hose PE/PTFE Hose Quick Connects 2. H200-CDU Size 800mm(W)*2100mm(H)*1000mm(D) Cooling Capacity 200kW Power 3.5kW Input Voltage 3-Phase 380V-480V, 50/60Hz Cooling Medium Pure water/Soften water Antifreeze Corrosion Inhibitor Inlet/Outlet 10°C (Normal) 14°C (High Performance) Rated Flow Rate 20m³/h Operating Temperature -25℃~45℃ Operating Humidity 5%~95%RH PLC System Constant flow control with pressure regulation Communication Method Modbus-RTU,TCP/IP Design Pressure 0.3MPa 3. H200-Dry Cooler Model FHWDC200 Module Dry Cooler V Type Cooling Capacity 200kW Wight(Empty Load) 800KG FANs 2 Connection DN50 Fluid Coolant Fluid flowrate 20m³/h Inlet/Outlet Temperature 55℃/40℃ Ambient temperature 35℃ Fin/Tube Materials 304 Stainless steel，Al-mg/AI Operating/Maximum Pressure 0.3MPA/1.6MPA Additional information | Purchasing Guidelines The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above. Welcome to ask for details for different order. For some countries,DDP service (PRICE including the custom cost and shipping charge) also can be provided. The pictures shown are for reference only; the final shipment version shall prevail. We kindly request your understanding that once an order or preorder has been placed with BITMARS Group, it is considered final and cannot be canceled. | Shipping Details Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMARS has received full payment. For the pre-order, the specific delivery date of which is subject to the factory. If there is any update on the schedule, BITMARS would keep the buyer fully informed. | Warranty Kindly note that for new brand 100% miners,warranty is 12 months/6 months (up to different policy from factory ) since the production from factory. FogHashing will cover shipping costs when shipping a replacement unit within the warranty period. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without FogHashing’s prior consent, FogHashing will not be liable for any damage arising therefrom. Clicking here for a complete list of the Terms & Conditions that apply to all orders placed on foghasing.io.
